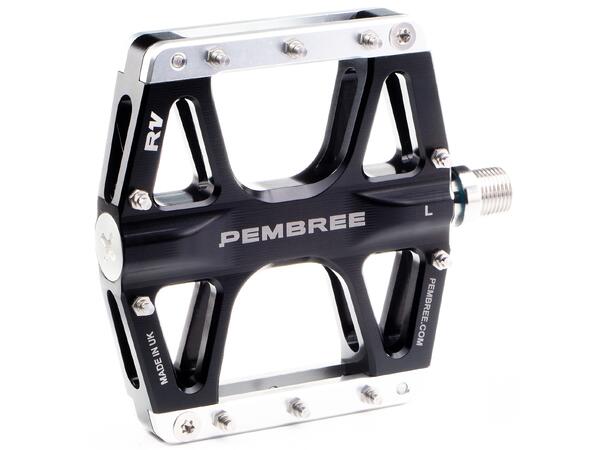

Pembree R1V Flat Pedal


The Pembree R1V elevates the platform pedal to a whole new level of performance and durability. The replaceable Traction Rails and Pins combined with the concave pedal body provide unrivalled grip and support for the rider.
The SKF sealed ball and needle bearings will provide many years of maintenance-free riding and a dedicated spindle seal will keep even the worst of the winters out. All Traction Pins, bolts and nuts as well as the spindle are stainless steel providing strength and corrosion resistance.


Specifications:
- Spindle: Stainless Steel Pedal
- Body: Aluminium
- Traction Pins: Stainless Steel
- Traction Rails: Aluminium
- End Cap: Aluminium
- Inner Bearings: Sealed Schaeffler Needle Bearings
- Outer Bearings: Sealed Schaeffler Ball Bearings
- Pins: 10 Traction Pins per side
- Body Dimensions: 100mm x 110mm x 20mm
- Weight: 624g
- Warranty: 5 years

Pedal Body:
A 3D concave platform secures the riders feet securely. Chamfers all round ensues that all mud is evacuated quickly especially useful. The anodising is far thicker than our competitors that will maintain its appearance far longer.
- Material: Aluminium
- Manufacturing Method: 5 axis CNC Milling from solid billet of aluminium
- Manufacturing Location: PEMBREE, East Sussex, England
- Sustainability: Widely and easily recyclable

Traction Pins:
- Material: Stainless Steel
- Manufacturing Method: CNC Turned
- Designed by Pembree with exceptional traction they are easily replaceable if damaged.
- Manufacturing Location: Precision Products, Brighton, England.
- Sustainability: Widely and easily recyclable

Spindle:
- Material: Stainless Steel provides an outstanding combination of high strength, good corrosion resistance and good mechanical properties.
- Manufacturing Method: CNC Turned
- Manufacturing Location: Precision Products, Brighton, England. Aerospace accredited
- Sustainability – Widely and easily recyclable

Bearings:
R1V's are manufactured to a much tighter tolerance making them ideal for the highest quality sealed ball and needle bearings from Schaeffler. They are sealed on both sides to ensure years of maintenance free riding. Shaft seals are designed specifically to keep contamination out of the inside of the pedal.
- Manufacturing Method: N/A
- Manufacturing Location: Schaeffler, Germany
- Sustainability: Recyclable by Pembree

End Cap:
Slimline end cap maximises the distance between the ball bearings and needle bearings, resulting in more a stable spindle, protecting the bearings and their lifetime.
- Material: Aluminium
- Manufacturing Method: CNC Turned
- Manufacturing Location: Precision Products, Brighton, England. Aerospace accredited.
- Sustainability: Widely and easily recyclable

Environmental Specifications:
- Materials: All individual components of the R1V are fully recyclable. Recycling aluminium reduces energy consumption by 95% compared to producing new.
- Energy: The Pembree factory solely uses renewable energy from Ecotricity
- Manufacturing: All swarf is 100% recycled. No waste to landfill.
- Packaging: All Pembree packaging is recycled, can be recycled and is 100% plastic free

About Pembree:
Pembree was created with 2 goals in mind; one to design and manufacture mountain bike components that are built to last with incredible design features, and two, to challenge the mountain biking industry to obtain a more sustainable and ethical approach. Pembree components are hand-crafted and fully made in England. All components, from the aluminium all the way to the bearings, are sustainably sourced and easily recyclable.
