Woom UP 5 24"

15,3 kg, 7-11 years, 128-145cm

Product nr:1205307071681205308
RRP3 199.90 EUR
DescriptionAccessoriesSupport
Description

Woom UP 5

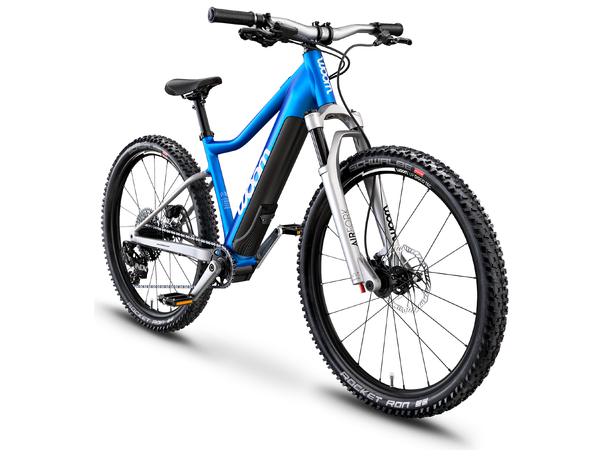

An ultralight 24" electric mountain bike with a suspension fork, Fazua drive and disc brakes designed for children aged 7 years and over. The ultralight woom UP 5 represents a well-rounded, playful e-mountain bike for kids aged seven and upwards. With smooth and sensitive support from the motor and child-specific components, it delivers an exceptionally natural feeling when riding together with an extra dose of flow for fun times guaranteed. For surfing the trails or reaching far-flung peaks, the woom UP turns every ride into an adventure.


Details:
- User age: 7-11 years
- User height: 128-145cm
- Bike weight: 15,8kg
- Wheelsize: 24"

Key Features:

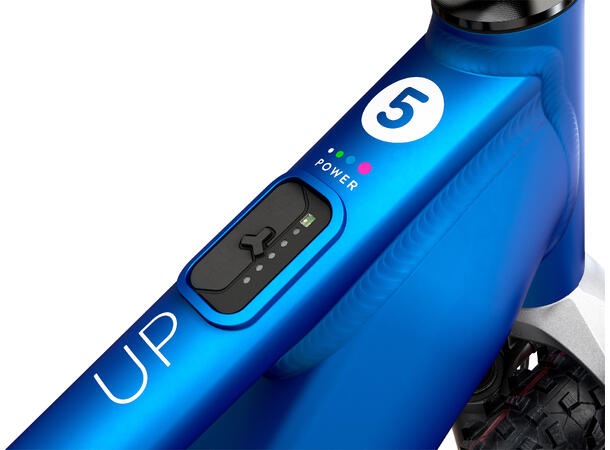

- E-Motor: The smooth, rider-friendly Fazua drive system delivers a natural feeling when riding without any pedalling resistance – guaranteed across all three support modes. The compact and lightweight combined motor and battery unit is subtly integrated into the down tube and can easily be removed.
- Frame: The superlight aluminium frame with butted hydroformed tubes has impeccable MTB genes with modern geometry, a long wheelbase and a flat steering angle. The kink in the top tube makes it easy to dismount quickly in any situation.
- Suspension fork: Comfort and control on the bumpiest terrain is a given thanks to the high-quality suspension fork, which can be adjusted to the rider’s weight. With adjustable compression and rebound damping, the fork can be tuned for the terrain and the day’s conditions, plus its lock-out function is a bonus on the climbs. For long days on the trail or skirting home through the forest, good times are guaranteed.

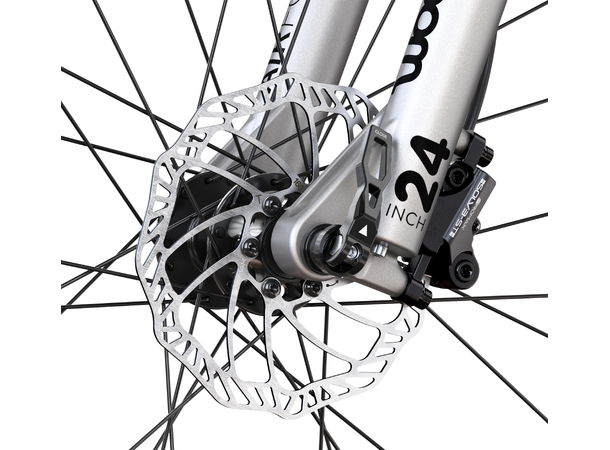

- Brakes: Easy-to-modulate disc brakes are teamed with special brake levers designed for children's hands to provide maximum stopping power in every situation including steep slopes and wet conditions.

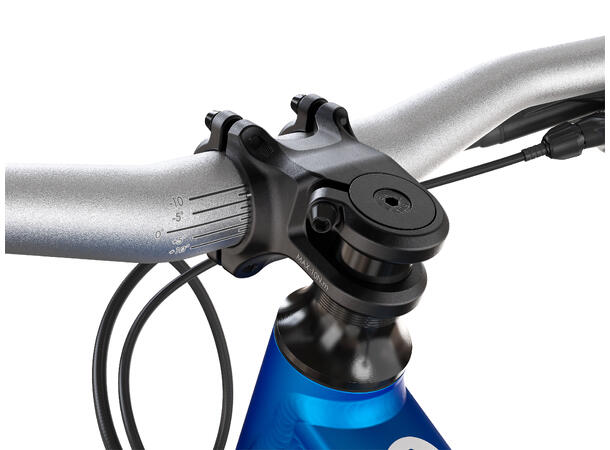

- Stem: Specially developed from forged aluminium, this stem pairs the ultimate stiffness with the lowest possible weight. Thanks to its flip-flop design, there’s the option to raise the height of the bars simply by inverting it.

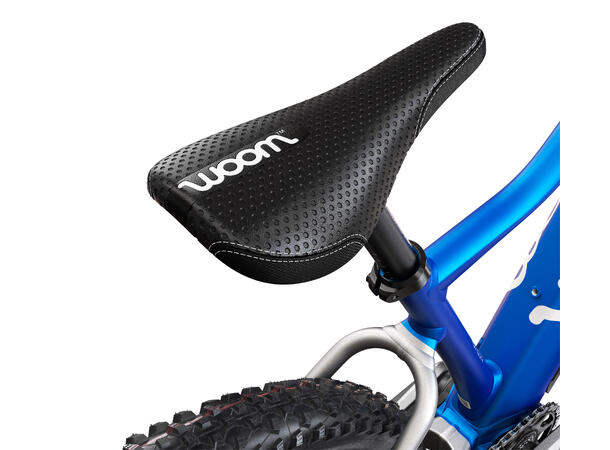

- Saddle: The saddle is one of the most important points of contact between the child and the bike. It is vital when it comes to ride enjoyment. That is why our saddle is designed to fit the pelvis of children in this age group and give them a slightly stretched-out riding position. Perfect for getting the most out of their ride!
- Gears: Smooth shifting comes courtesy of our precise and easy-to-operate gear system. The SRAM NX has eleven gears and a wide gear ratio, ready to thrive whatever the gradient.

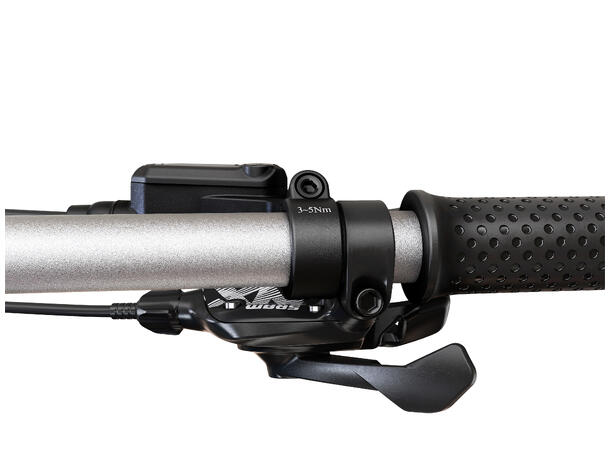

- Trigger shifter: The easy-to-operate SRAM NX trigger shifter makes light work for children’s thumbs by shifting efficiently through the eleven gears with precision.

Specifications:

E-motor Fazua evation drive system
  250 watt motor output
  250 Wh battery capacity
  55 Nm torque
  20 km/h assistance limit
  Three support modes
  Removable motor and battery unit (3.3 kg), optional downtube cover available from Fazua
  Adjustment of various settings using the Fazua Rider app

Frame Frame material: lightweight, high-quality 6061 T6 aluminium with butted and hydroformed tubes
  24? wheels
  Confidence-inspiring handling: an easy-access low top tube, low centre of gravity and long wheelbase provide good balance and make for a fun, safe ride

Gears 11 speeds
  SRAM NX trigger shifter
  SRAM NX rear derailleur

Fork Hydraulic air suspension fork with 80 mm travel, adjustable compression and rebound damping, plus lock-out
  1 1/8? – 1? baby taper shaft
  100 x 15 mm through axle
  Post mount for disc brake

Wheels Superlight woom OFF DISCO TEC double-chamber aluminium rims
  Aluminium hubs with sealed industrial bearings
  Through axles for maximum torsional strength (100 x 15 mm front / 135 x 12 mm rear)
  20 G14 spokes, double-crossed lacing
  Aluminium nipples

Headset Fully integrated 1 1/8? – 1? headset
  Sealed industrial bearings

Tyres 24 x 2.35? Schwalbe Rocket Ron with ADDIX SPEED rubber compound
  Quality MTB tyres with low rolling resistance, maximum grip, good shock absorption and excellent durability
  Car-type valves for easy filling at any service station

Stem Forged aluminium
  CNC-machined
  Handlebars attached via two clamps
  +/-15° flip-flop design to adjust handlebar height
  Length: 50 mm

Saddle Ergonomically designed to fit children's pelvis
  Non-toxic
  Side protection to lean against walls

Handlebars Wide, ergonomically adapted and lightweight aluminium bars for more control
  Sandblasted and silver anodised
  Width: 600 mm
  Rise: 20 mm

Seatpost 27.2 x 250 mm
  Anodised aluminium seatpost with insertion marks that indicate the minimum insertion depth

Grips Child-friendly thanks to small diameter
  100% silicone for maximum grip
  Non-toxic
  Screwed-in end plugs

Seatpost Clamp Made of aluminium
  No risk of turning and/or twisting

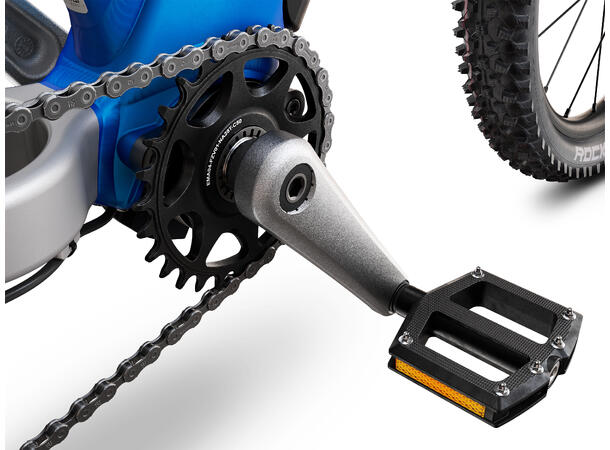

Drive Lightweight, forged 130 mm aluminium cranks with narrow tread (Q-factor)
  Narrow-wide direct-mount chainring 28T
  Cassette with 11-42 teeth in the back
  Flat pedals made from fibre-reinforced nylon
  Cr-Mo axle and sealed industrial ball bearings

Enclosed tools 4 mm hex key for stem and seatpost clamp
  8 mm hex key for front wheel and pedals

Brakes Hydraulic disc brakes by Promax
  Disc diameter (front/back): 160/140 mm
  Ergonomic brake levers designed for children's hands

Weight 15.8 kg (without pedals)

Weight limit 80 kg (maximum combined weight of bicycle, rider and cargo)

Colours Electric blue
